Custom OEM OLTC Switches & Tap Changer Systems
Explore our flagship series of certified On-Load Tap Changers, OLTC-integrated distribution transformers, and precision diagnostic instruments built to IEC 60214-1 & IEEE C57.131 specifications.

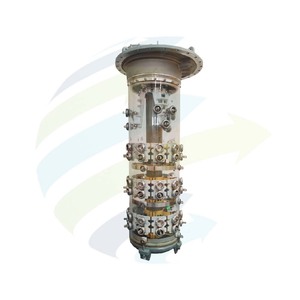

35-110kV 500A Oil-immersed Transformer Load Tap Changer OLTC Switch

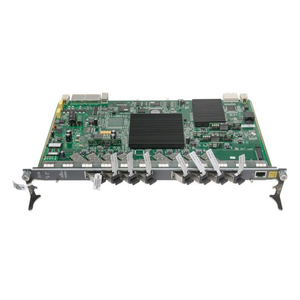

8 Ports FTTH GPON OLT Switch Board GC8B SFP C+ C++ Wired LAN Network Equipment

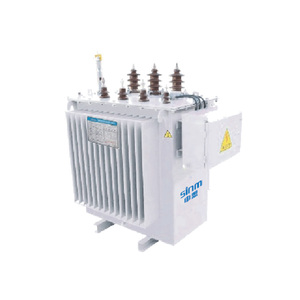

SZ13 M /ZT 400 (125) 10 OLTC Transformer Dual Capacity Maintenance Free Custom

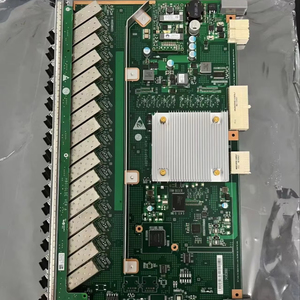

ZTE HW OSN1500 Enterprise Switches Factory Priced OLT Transfer Board

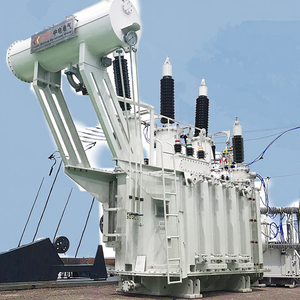

Customized Power 138KV 160 MVA Three Phase High Voltage Auto Transformer with OLTC

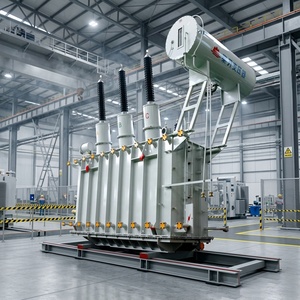

Three Phase Hermetically Sealed Oil Immersed Transformer with Load Tap Changer (OLTC)

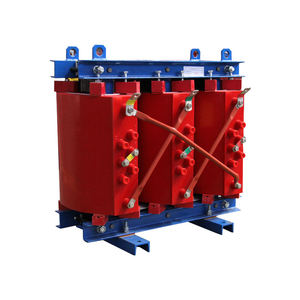

2500KVA 10KV/6KV Three Phase Step Down HV Electrical Distribution Dry Transformer with OLTC
HB-SV52 Portable Digital Transformer OLTC Tester On-Load Tap Changer Testing Device
On-Load Tap Changer (OLTC) Architecture in Modern Power Grids
Understanding the critical role of custom OEM OLTC switching mechanisms in maintaining grid stability, regulating voltage fluctuations, and extending transformer longevity.
Diverter Switch & Selector Switch Engineering
The primary function of an On-Load Tap Changer (OLTC) is to alter the turn ratio of a transformer without interrupting the load current. In heavy-duty power transformers (ranging from 10kV distribution units to 138kV high-voltage autotransformers), the OLTC operates by transferring current from one tap to an adjacent tap using transition resistors to bridge the step voltage. Modern OEM designs isolate arc breaking within specialized vacuum interrupters, completely preventing dielectric oil degradation and carbon formation.
Short-Circuit Strength & Thermal Endurance
Custom OEM OLTC switches must endure extreme dynamic electromechanical stresses during system short-circuit faults. Engineering specifications demand strict compliance with IEC 60214-1 standards, ensuring that contacts maintain continuous contact pressure under peak short-circuit currents up to 25kA. Furthermore, optimized silver-cadmium oxide and copper-tungsten contact alloys minimize thermal contact erosion over hundreds of thousands of switching cycles under full rated load.
Traditional oil-immersed tap changers draw an electrical arc directly inside transformer mineral oil during tap transition. This generates acetylene, hydrogen, and carbon particles, necessitating frequent oil filtration and contact replacement. Advanced OEM vacuum OLTC switches enclose the arcing contacts inside hermetically sealed vacuum interrupters. This breakthrough achieves up to 300,000 operations without contact replacement and extends maintenance intervals from 3 years to 15+ years.
World-Class OEM Manufacturing & Testing Infrastructure
Backed by over 30 years of transformer and switchgear engineering expertise, serving utilities and global OEMs in over 40 countries.
Comprehensive High-Voltage Testing Laboratory
Our state-of-the-art manufacturing plant features an in-built high-voltage test bay capable of performing full routine and type tests. This includes full-wave lightning impulse withstand testing (BIL up to 750kV), temperature rise testing under continuous load, partial discharge measurement (< 5 pC), and dynamic contact timing analysis using digital OLTC testers.
- Full dielectric breakdown & power factor testing
- Acoustic emission & mechanical vibration profiling
- Short-circuit withstand strength validation by CPRI/ERDA
Tailored OEM & ODM Custom Engineering
We partner directly with power transformer OEMs, utility distribution companies, and industrial plant engineers to supply bespoke OLTC switch configurations. Whether you require in-tank diverter switches, compartment-type selector switches, linear tap changers, or motorized remote control drive units (MRCG), our engineering team delivers precise CAD/FEA-designed units matched to your transformer tank geometry.
- Compatible with mineral oil, natural ester, and dry-type VPI transformers
- Custom voltage steps (0.625%, 1.25%, 2.5% per step)
- Flexible mounting flanges and shaft drive coupling interfaces
Technical Comparison Matrix: OLTC Switching Technologies
Select the optimal tap-changing mechanism for your power system requirements, balancing initial capital expenditure against total cost of ownership (TCO).
| Performance Characteristic | Conventional Oil-Arc OLTC | Vacuum Interrupter OLTC | Off-Circuit Tap Changer (DETC) |
|---|---|---|---|
| Switching Medium | Transformer Mineral Oil | Hermetically Sealed Vacuum Bottle | No-Load Mechanical Contact |
| Operation Under Load | Full Continuous Load | Full Continuous Load | De-energized Grid Only |
| Electrical Contact Life | 50,000 – 100,000 Operations | 300,000+ Operations | Static (Manual Change) |
| Dielectric Oil Contamination | High (Carbon & Dissolved Gas) | Zero Oil Degradation | Zero Oil Degradation |
| Maintenance Interval | Every 3 Years or 15k Cycles | Every 15 Years or 150k Cycles | Periodic Inspection Only |
| Ester Fluid Compatibility | Limited (Arc carbonization) | 100% Synthetic/Natural Ester | Fully Compatible |
| Target Application | Standard Utility Substations | Smart Grids, Renewables, Heavy Industry | Static Distribution Lines |
Next-Generation Trends in OLTC & Voltage Regulation
Key technological shifts driving modern power grid modernization, renewable energy integration, and smart substation automation.
1. IoT-Driven Condition Monitoring
Modern utility grids require real-time visibility into health diagnostics. Modern custom OEM OLTC switches are integrated with online Dissolved Gas Analysis (DGA) sensors, vibro-acoustic monitoring modules, and digital motor drive controllers. These systems transmit real-time tap position data, contact wear indicators, and torque signatures via IEC 61850 substation protocols.
2. Renewable Energy Integration
Solar PV plants and offshore wind farms exhibit extreme voltage volatility caused by intermittent cloud cover and wind gusts. Traditional transformers struggle with frequent tap changing. Modern vacuum OLTC switches engineered by custom suppliers support high-frequency switching (up to 100+ operations per day) without thermal degradation, making them essential for renewable microgrids.
3. Eco-Friendly Bio-Ester Compatibility
With increasing environmental regulations and fire safety requirements in urban centers, utilities are transitioning from mineral oil to bio-based natural synthetic ester fluids. OEM OLTC designs feature specialized fluorocarbon polymer gaskets, modified contact gaps, and vacuum arcing chambers specifically tested for high-viscosity dielectric fluids.
Strategic Sourcing Trends for OEM Transformer Manufacturers
How global procurement directors and EPC contractors are optimizing supply chain reliability, compliance, and component customization.
Total Cost of Ownership (TCO) Prioritization
Procurement strategies have evolved beyond evaluating upfront equipment costs. Utility buyers now mandate complete lifecycle cost analysis. While vacuum OLTC switches carry a modest initial premium over traditional oil-arc switches, the elimination of oil filtration cycles, reduction in scheduled downtime, and extended contact operational lifespan deliver up to 40% savings in Total Cost of Ownership over a 30-year operational horizon.
Modular Retrofit & Standardized Interfaces
Global grid modernization projects frequently involve retrofitting existing aging power transformers with modern tap-changing capabilities. Sourcing partners that provide direct drop-in replacement OLTC switches—engineered with custom mechanical drive adapters and standardized mounting flanges—allow utilities to extend asset life without costly tank redesigns.
Frequently Asked Questions (FAQ)
Detailed technical answers to common questions asked by electrical engineers, transformer OEMs, and procurement specialists.
Your Trusted Global OEM Sourcing Partner
Delivering engineering excellence, robust supply chains, and technical compliance across five continents.
Certified Quality
ISO 9001:2015, ISO 14001:2015, and ISO 45001 certified manufacturing facilities.
30+ Years Heritage
Established in 1991, with decades of specialized transformer component development.
40+ Country Exports
40% of production exported to Europe, Middle East, Africa, and Asia-Pacific.
Type Tested Verification
Fully type-tested by independent authorities including CPRI & ERDA laboratories.
Request a Custom OEM Engineering Quote
Need customized On-Load Tap Changers, technical datasheet parameters, or factory-direct pricing? Our application engineers are ready to assist your team.
