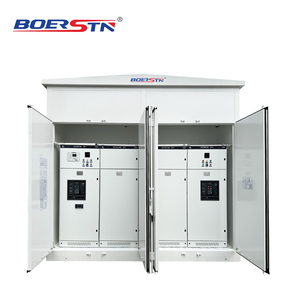

HV MV 35kV Compact Substation | Prefabricated Box Type Outdoor Kiosk Package Distribution Substation HV

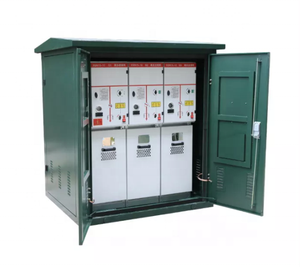

Outdoor Substation 11/0.4KV 6.6/0.4KV Electricity Power Distribution Transformer Station / Kiosk Container Substation

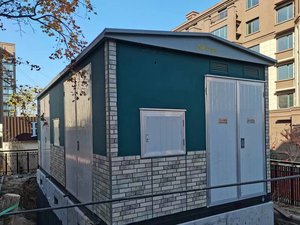

YBM Series High/Low Voltage Pre-assembled Substation (Pad-Mounted Substation)

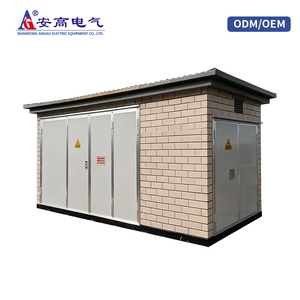

ANGAO OEM/ODM Three Phase European Type Compact Substation Transformer Pad-mounted Kiosk YBW Model Mini Package

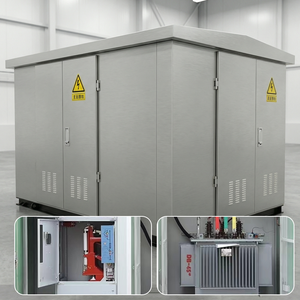

GDQ Custom High Voltage Industrial Metal Combined Electric Substation

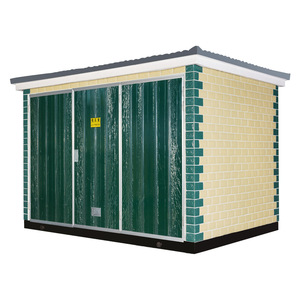

Integrated Outdoor Box Type Substation Compact Transformer Kiosk Substation for Industrial and Mining Power Supply

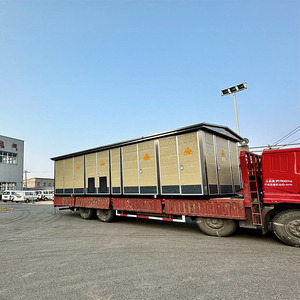

Ampereon Prefabricated Compact Substation With Energy Metering Device And Reactive Power Compensation Device Price
30+
Years Manufacturing Excellence
40+
Global Export Markets Served
100%
CPRI & ERDA Type-Tested Compliance
35kV
Maximum Voltage Class Capability
The Strategic Imperative of OEM/ODM Kiosk Substation Manufacturing
In modern power distribution engineering, the demand for compact, factory-assembled, and high-reliability step-down electrical stations has catalyzed a massive paradigm shift. As a premier OEM/ODM Kiosk Substation Manufacturer, our manufacturing ecosystem bridges the gap between complex utility requirements and rapid site deployment. Traditional brick-and-mortar substations require extensive civil works, prolonged site assembly, multi-vendor coordination, and heightened exposure to environmental contamination. Conversely, a prefabricated compact kiosk package substation integrates high-voltage (HV) switchgear, step-down distribution transformers, and low-voltage (LV) switchboards into a single, thermally isolated, climate-controlled enclosure.
Information Gain Insight: Modern electrical grid modernization relies heavily on internal arc-classified (IAC AFLR) kiosk designs. According to IEC 62271-202 specifications, housing the transformer and switchgear within a factory-tested enclosure guarantees zero risk to operating personnel under catastrophic internal fault conditions up to 20kA for 1 second.
Whether navigating dense urban centers, remote mining sites, offshore renewable microgrids, or municipal infrastructure projects, choosing the right OEM/ODM manufacturing partner ensures tailored enclosure ergonomics, exact protection relay co-ordination, dynamic thermal dissipation, and optimal footprint efficiency.
Technical Taxonomy: European-Type vs. American-Type Pad-Mounted Substation Enclosures
Understanding the architectural distinction between major global compact substation topologies is vital for engineering procurement directors and EPC contractors:
| Architecture Type | Enclosure Construction | HV Switchgear Integration | Transformer Compartment | Target Applications |
|---|---|---|---|---|
| European-Type (YBW Series) | Triple-compartment modular metal or GRC housing; fully separated HV, Transformer, and LV sections. | Ring Main Unit (RMU) using SF6 or Eco-Gas GIS / Air Insulated Switchgear up to 36kV. | Hermetically sealed oil-filled or VPI dry-type transformer with independent natural/forced cooling ducts. | Urban utilities, commercial complexes, European & Asian distribution networks. |
| American Pad-Mounted | Tamper-proof, low-profile box steel cabinet; integrated liquid tank construction. | Loadbreak bayonet fuses, dead-front elbow connectors, liquid-immersed switchgear. | Common tank design housing core/windings directly integrated with high-voltage bushings. | North American utility grids, industrial parks, underground residential distribution (URD). |
| Containerized Modular Kiosk | Heavy-duty 10ft/20ft/40ft ISO reinforced corrugated steel shell; high anti-corrosion C5-M painting. | Custom draw-out air circuit breakers (ACB), vacuum circuit breakers (VCB), and SCADA telemetry panels. | Dual or triple transformer configurations with automated HVAC and fire suppression systems. | Mining operations, utility solar PV farms, wind energy collector stations, rail transit. |
Future Global Procurement Trends in Kiosk Substation Manufacturing
As the global energy transition accelerates toward decarbonization, microgrid electrification, and digital utility control, B2B procurement managers must align their supply chain specifications with emerging technological trends. Procurement strategies over the next decade are being reshaped by four crucial industry dynamics:
1. IoT-Enabled Smart Substation Telemetry
Next-generation OEM kiosks integrate smart sensors for real-time Dissolved Gas Analysis (DGA), fiber-optic winding thermal sensing, partial discharge monitoring, and cloud-based predictive maintenance via Modbus RTU/IEC 61850 protocols.
2. Green Fluid & Dry-Type Integration
Global environmental mandates are driving transition away from mineral oils toward biodegradable synthetic esters (FR3) and Vacuum Pressure Impregnated (VPI) dry-type transformers, mitigating soil contamination and eliminating fire hazards in dense populated zones.
3. Extreme Climate & C5-M Anti-Corrosion
With aggressive expansion into coastal wind farms, desert solar plants, and heavy chemical zones, buyers mandate specialized hot-dip galvanized steel, stainless steel 316L, or Glass Reinforced Concrete (GRC) enclosures with C5-M marine rating.
Supply Chain Advice for EPCs: Procurement leads should seek manufacturers capable of providing end-to-end factory acceptance testing (FAT) including full temperature rise tests, impulse voltage withstand, and IP rating validation under a unified quality audit to avoid project delay risk.
End-to-End OEM/ODM Custom Engineering Workflow
As a specialized manufacturer with over 30 years of engineering experience, our enterprise delivers tailored compact substation solutions tailored precisely to client electrical single-line diagrams (SLD), spatial constraints, and regional grid interconnection codes.
01
SLD & CAD FEA Engineering
Detailed analysis of single line diagrams, load curves, harmonic spectrums, and finite element thermal simulation for structural optimization.
02
Precision CNC Fabrication
Computerized laser cutting, robotic welding, and automated bending of 2mm-3mm galvanized or stainless steel sheets to guarantee exact IP54/IP65 seal tightness.
03
Busbar & Surface Processing
High-purity electrolytic T2 copper busbar processing with tin/silver plating, thermal shrink sleeving, and electrostatic epoxy powder coating (90+ microns).
04
Core, Winding & Assembly
High-grade cold-rolled grain-oriented (CRGO) silicon steel core stacking with precision copper/aluminum foil windings assembled inside designated compartments.
05
Rigorous CPRI/ERDA Testing
100% routine testing including ratio, vector group, winding resistance, dielectric insulation, loss measurement, and certified type testing verification.
06
Global Logistics & Field Support
Heavy-duty sea-worthy export packaging, container loading logistics, commissioning support, and turnkey spare-part warranty backup across 40+ countries.
B2B Kiosk Substation Procurement FAQ
Address key technical, commercial, and operational queries encountered by grid engineers, procurement directors, and project developers when sourcing compact substations globally.
What key international standards govern your OEM/ODM kiosk substation manufacturing process?
Our compact substations and prefabricated kiosks are fully engineered and tested in accordance with standard IEC 62271-202 (high-voltage/low-voltage prefabricated substations), IEC 60076 (power transformers), IS 2026 / IS 1180 (Indian standards), and IEEE C57 / ANSI requirements. Facilities operate under strict ISO 9001:2015 Quality Management, ISO 14001:2015 Environmental Management, and ISO 45001 Occupational Health & Safety guidelines, with design validation performed by premier independent laboratories such as CPRI (Central Power Research Institute) and ERDA.
How does thermal dissipation work inside a sealed outdoor compact kiosk substation?
Thermal management is achieved through a multi-stage engineered ventilation system. The transformer compartment utilizes natural convection (ONAN) aided by double-walled louvered ventilation panels with labyrinth dust filters (rated IP54). For high ambient temperature environments (exceeding +50°C), automated forced-air cooling fans controlled by digital thermostat relays engage dynamically. Natural airflow channels separate high-loss electrical components from temperature-sensitive protection microprocessors, preventing thermal derating.
Can you customize low-voltage (LV) and high-voltage (HV) switchgear brands within the ODM kiosk?
Yes, complete ODM flexibility is a cornerstone of our manufacturing strategy. While we offer standardized high-reliability internal VCB/RMU switchgear and APFC panels, clients can specify preferred third-party brands (e.g., ABB, Schneider Electric, Siemens, Eaton, or Chint) for vacuum circuit breakers, SF6 ring main units, digital protection relays, and smart energy meters to ensure seamless integration with local utility spare-part inventory.
What enclosure materials are recommended for severe marine or industrial chemical environments?
For severe environments (such as offshore wind farms, coastal sub-stations, fertilizer plants, or underground mines), we offer specialized enclosure materials: 304 or 316L Stainless Steel, Marine-Grade Aluminum Alloy, or Glass-Reinforced Composite Cement (GRC). Surface treatments include multi-layer polyurethane painting systems meeting ISO 12944 C5-M marine corrosion resistance classification, tested for 1,500+ hours of continuous salt-spray exposure.
What is the typical manufacturing lead time for custom OEM prefabricated kiosk substations?
Standard production lead times range from 4 to 8 weeks following final engineering drawing sign-off (SLD approval). Accelerated expedited tracks are available for standard YBM/YBW series compact substations up to 33kV class. Factory Acceptance Testing (FAT) can be performed in-person at our manufacturing hub or via high-definition live video stream complete with real-time calibrated meter readouts.
Our Corporate OEM/ODM Infrastructure & Engineering Advantage
Rooted in over 30 years of industrial transformer and electrical distribution equipment manufacturing (established in 1991), our organization stands as a global powerhouse in low, medium, and high-voltage power distribution. Serving prestigious state electricity boards, global engineering contractors, and Fortune 500 industrial enterprises, over 40% of our production volume is exported internationally across Africa, the Middle East, Europe, and Southeast Asia.
In-House Testing Facility
Equipped with state-of-the-art impulse generators, partial discharge detectors, high-voltage breakdown testers, and an in-built temperature-rise testing station capable of verifying severe loading conditions.
Full Regulatory Validation
All transformer core designs and compact kiosk housings possess valid type test certificates from internationally recognized agencies (CPRI / ERDA), complying with IS 2026, IS 1180, and IEC 60076 standards.
Global Engineering Support
Dedicated international sales engineering team providing rapid technical quotation, CAD 3D layout rendering, international freight logistics, site installation supervision, and 24/7 technical assistance.
