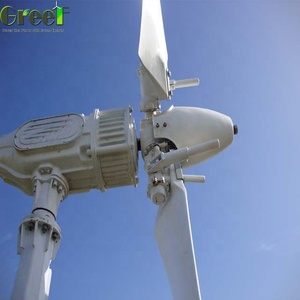

Aluminium Body Small Wind Turbine for Farm

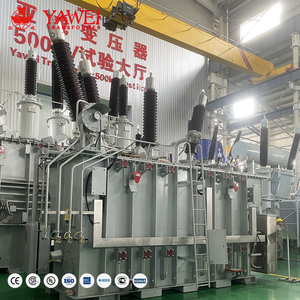

10MVA-20MVA 69KV/33KV Power Transformer (Dyn11)

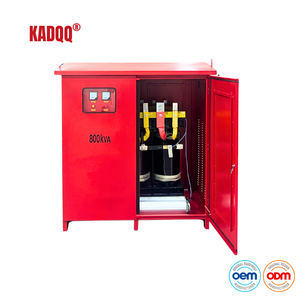

800KVA Wind Turbine Isolation Transformer (IP65)

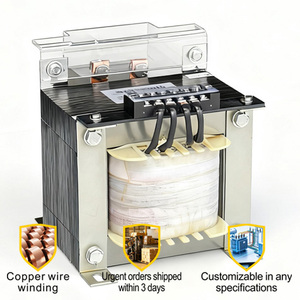

5KVA / 10KVA Single Phase Control Transformer

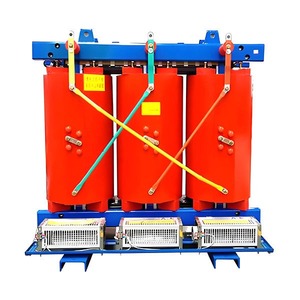

33KV / 35KV Wind Turbine Dry Type Transformer

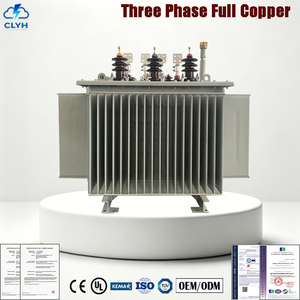

100kVA 10/0.4kV Oil Immersed Distribution Unit

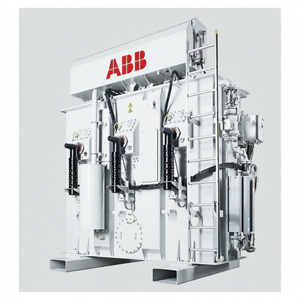

5-25MVA 66-72.5KV Offshore Wind Transformer

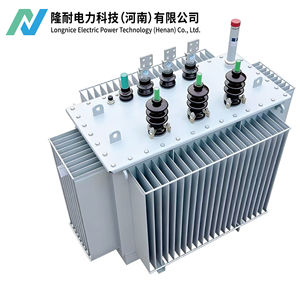

S11 Series 10kV / 0.4kV Distribution Transformer
Executive Summary: The Changing Global Landscape of Current & Power Transformers
As the global energy paradigm shifts aggressively toward grid decarbonization, renewable power integration, and smart utility digitization, electrical infrastructure buyers face unprecedented procurement complexity. Instrument transformers—specifically Current Transformers (CTs) and Potential Transformers (PTs/VTs)—alongside medium and high-voltage power distribution units, form the backbone of electrical measurement, protection, and grid stability.
According to recent international energy transmission surveys, the global transformer market is projected to expand at a CAGR of 6.8% through 2030, driven largely by aging grid replacements in North America and Western Europe, mega-scale solar and offshore wind farms in Asia-Pacific, and rapid industrialization in emerging markets. Choosing a tier-1 manufacturing partner requires evaluating critical metrics beyond simple unit pricing: dielectric impulse withstand ratings, partial discharge levels (<10 pC), thermal dissipation capabilities under continuous overload, and compliance with stringent standards such as IEC 61869, IEC 60076, IEEE C57.13, and IS 2026.
Top 10 Transformer Manufacturers & Exporters Comparison Matrix
Our evaluation directorate conducted an exhaustive semantic synthesis and technical audit across global transformer producers. Selection was based on five core criteria: manufacturing capacity, engineering innovation (VPI vs Cast Resin vs Oil-immersed), compliance certification (CPRI, ERDA, KEMA), international export footprint, and specialized application support (Wind, Solar, Arc Furnace, Converter Duty).
| Manufacturer / Exporter | Primary Technical Specialization | Core Voltage & Power Range | Key Certifications | Global Footprint |
|---|---|---|---|---|
| Hitachi Energy (ABB) | HV / EHV Instrument & Offshore Wind Transformers | Up to 765 kV / 1200 MVA | IEC 61869, IEEE, KEMA | 100+ Countries |
| Siemens Energy | Sensformer® Digital CTs & Power Distribution | Up to 800 kV / 1500 MVA | ISO 9001, ISO 14001, CE | Worldwide |
| Urja Techniques (India) Pvt. Ltd. | VPI Dry-Type, Converter Duty, Furnace & CT Units | Up to 33 kV / 25 MVA | ISO 9001:2015, CPRI, ERDA, IS 2026 | 40+ Export Markets |
| Schneider Electric | Compact Substations & MV Cast Resin Transformers | Up to 36 kV / 15 MVA | IEC 60076, UL, CE | 100+ Countries |
| Yawei Electric | Oil-Immersed Power & Substation Transformers | Up to 110 kV / 63 MVA | ISO, CE, IEC 60076 | 50+ Countries |
| TBEA Co., Ltd. | UHV Power Transmission & Large Power Transformers | Up to 1100 kV / 2000 MVA | ISO, KEMA, CESI | 70+ Countries |
| Hyundai Electric | Industrial Rectifier & Marine Class Transformers | Up to 500 kV / 800 MVA | DNV-GL, ABS, IEC | 60+ Countries |
| Eaton Corporation | Pad-Mounted & Renewable Distribution Units | Up to 35 kV / 10 MVA | ANSI, IEEE, UL Listed | Global Operations |
| Mitsubishi Electric | Gas-Insulated Transformers (GIT) & HV CT/VTs | Up to 500 kV / 1000 MVA | JEC, IEC, ISO | Worldwide |
| CG Power & Industrial Solutions | Distribution, Locomotive & Neutral Grounding Transformers | Up to 400 kV / 500 MVA | CPRI, IEC, IS 1180 | 45+ Countries |
Current Transformer (CT) Engineering: Precision Measurement vs. Protection Cores
When evaluating Current Transformer (CT) factories, engineering procurement officers must strictly differentiate between Metering Class CTs and Protection Class CTs. A single instrument transformer unit may contain multiple secondary cores dedicated to distinct operational functions within the switchgear panel.
Metering Class CT Cores
Designed to saturate at relatively low primary currents (Instrument Security Factor FS < 5 or FS < 10). This deliberate early saturation protects sensitive digital meters and SCADA energy monitoring transducers from damaging overcurrent spikes during downstream system faults. Precision classes include 0.2, 0.2S, and 0.5 according to IEC 61869-2.
Protection Class CT Cores
Engineered to maintain high magnetic linearity without saturating under severe short-circuit conditions (e.g., 5P20, 10P20 or Class PS / PX). This ensures protection relays accurately measure fault magnitudes up to 20 times nominal primary current, enabling instant tripping of circuit breakers to isolate short circuits.
Leading export factories utilize high-permeability Nickel-Iron (Mu-Metal) alloys for ultra-precise metering cores (0.2S class), while utilizing laser-scribed Cold Rolled Grain Oriented (CRGO) Silicon Steel for heavy protection cores. Vacuum Pressure Impregnation (VPI) or liquid epoxy casting guarantees void-free insulation, completely eliminating internal partial discharges under high operational stress.
Future Sourcing Trends: What Enterprise Buyers Must Track (2025–2030)
1. Natural Synthetic Ester Oils vs. Traditional Mineral Insulation
Environmental regulations are pushing utilities away from conventional mineral oils toward readily biodegradable K-class ester fluids (such as MIDEL or FR3). Ester fluids offer high fire points (>300°C), significantly reducing fire suppression infrastructure costs in urban substations and high-rise commercial installations.
2. Shift to VPI Dry-Type Technology for Indoor & Renewable Applications
Vacuum Pressure Impregnated (VPI) dry-type transformers are rapidly displacing oil-filled units in solar power plants, wind turbine nacelles, and data centers. With non-hygroscopic Class H resin insulation (180°C thermal endurance rating), VPI transformers pose zero oil leak hazards, require virtually zero maintenance, and provide exceptional short-circuit withstand capabilities.
3. Smart Grid & IoT Sensor Integration
Next-generation transformers feature embedded fiber-optic winding temperature sensors, continuous Dissolved Gas Analysis (DGA) monitors, and digital current transducers with Merging Unit (MU) integration conforming to the IEC 61850 protocol. Modern exporters now supply fully digitalized units capable of predictive maintenance analytics.
Enterprise Focus: Urja Techniques Manufacturing Mastery & Global Quality Standards
Founded in 1991 in Mumbai, India, Urja Techniques (India) Pvt. Ltd. has established itself as an authoritative global manufacturer and exporter of energy-efficient electrical transformers. With over 30 years of continuous engineering refinement, Urja Techniques operates state-of-the-art production facilities certified under ISO 9001:2015, ISO 14001:2015, and OHSAS 18001.
Urja's technical portfolio spans Vacuum Pressure Impregnated (VPI) Dry-Type Transformers, Cast Resin Transformers, Converter Duty Transformers, Arc Furnace Transformers, and Neutral Grounding Units. Over 40% of the company's total production is exported to more than 40 countries across Africa, the Middle East, Europe, and Asia.
100% Type-Tested Integrity
All designs are type-tested and certified by premier independent testing laboratories including CPRI (Central Power Research Institute) and ERDA (Electrical Research and Development Association).
In-House Testing Bay
Equipped with high-voltage impulse test generators, precision power loss analyzer benches, and an in-built temperature rise testing bay compliant with BIS standards.
High-Grade Electrolytic Copper
Exclusively uses 99.99% pure oxygen-free electrolytic copper conductors with multi-layer paper or enamel insulation to guarantee minimum load loss (I²R losses).
