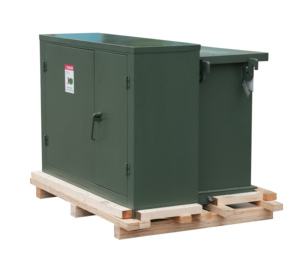

Three Phase Pad Mounted Transformer-Mounted on the Pad -City or Rural Electrical Distribution Use

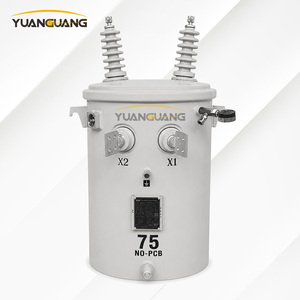

34.5Y/19.92KV 75KVA 100KVA 167KVA DOE CRGO Core Single Phase Liquid Filled Pole Mounted Transformer For Overhead Distribution

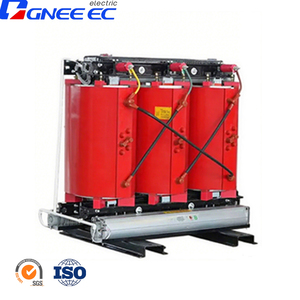

Earthing Dry Transformer Zigzag Connection System Grounding

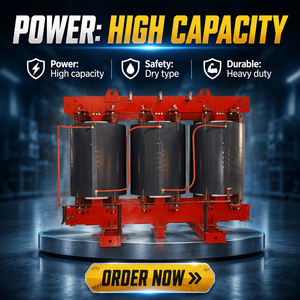

SCB10-5000/35 5000kVA Three Phase High Efficiency Power Distribution Transformer For Power Supply System

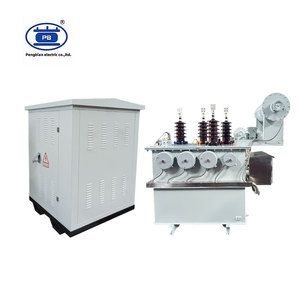

Pengbian Grounding Transformers 600KVA 800KVA 1000KVA Transformer Ground Resistance 50Hz/60Hz

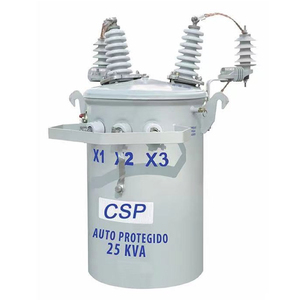

34.5kV 120/240V 75kVA 100kVA 167kVA ANSI Low Loss Amorphous Core Single Phase Pole Transformer For Communities

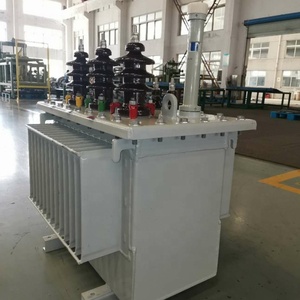

SGOB 60Kva Industrial Control Transformer 3 Phase Oil Immersed Outdoor 16kv Distribution Grounding Transformer

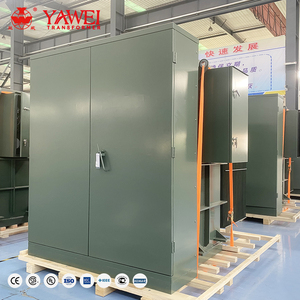

Yawei Outdoor 500Kva MV&HV Transformer Oil Immersed Grounding Pad Mounted Three-Phase Step-Up/Down Transformer MV&HV Transformer
Grounding Transformer Architecture in Greater Seattle Power Networks
An engineering analysis of zero-sequence path creation, transient overvoltage mitigation, and short-circuit fault current control in Pacific Northwest medium-voltage distribution systems.
1. The Critical Function of Neutral Grounding in Delta-Connected Networks
In the electrical distribution topology of Greater Seattle—encompassing utility networks operated by Seattle City Light (SCL), Puget Sound Energy (PSE), and regional industrial microgrids—medium-voltage distribution grids frequently employ ungrounded or delta-connected transformer secondaries (e.g., 13.8kV, 26.4kV, or 34.5kV feeds). While ungrounded delta systems offer operational continuity during a first single-line-to-ground (SLG) fault, they introduce extreme vulnerabilities to severe transient overvoltages caused by intermittent arcing ground faults and ferroresonance.
A Grounding Transformer (Earthing Transformer) serves as the indispensable cornerstone for stabilizing such networks. By providing a low-impedance neutral return path for zero-sequence currents under ground fault conditions, grounding transformers enable precise protective relaying (such as 51N neutral overcurrent or 59N residual voltage relays), limit system neutral displacement, and prevent line-to-ground insulation breakdown across sub-transmission and industrial infrastructure.
2. Zigzag (Zn) vs. Wye-Delta (Ynd) Topology Engineering
Urja Techniques manufactures both primary topologies of grounding transformers customized for North American frequency (60Hz) and voltage classifications:
- Zigzag (Zn) Winding Configuration: Featuring three core legs with interconnected phase windings divided equally between two limbs. Under balanced three-phase operation, magnetic flux generated by the oppositely wound coils cancels out, resulting in near-zero magnetizing current and negligible power loss. When an SLG fault occurs, zero-sequence currents flow in phase through all three limbs, providing a low-impedance ground path.
- Wye-Open Delta (Ynd) Configuration: Incorporating a grounded star primary and a delta-connected secondary. The closed delta secondary allows free circulation of third-harmonic currents and provides the necessary zero-sequence current return loop during fault transients.
Localized Deployment Scenarios in Seattle & Puget Sound
Urja Techniques customizes liquid-filled and dry-type VPI grounding transformers to meet the stringent environmental, seismic, and municipal standards of King, Snohomish, and Pierce Counties.
Hyperscale AI Data Center Networks
Serving tech hubs in South Lake Union, Bellevue, and Redmond. High-capacity 34.5kV distribution systems require fast-clearing Neutral Grounding Resistor (NGR) integrated grounding transformers to protect sensitive server racks, UPS systems, and high-frequency digital power processing infrastructure from voltage spikes during ground faults.
Port of Seattle & Maritime Electrification
Supporting shore-to-ship power (cold ironing) at Terminal 5 and Pier 66. Built with C5-M marine-grade anti-corrosion exterior coatings, stainless steel hardware, and IP56 enclosure protection, ensuring exceptional resistance against Puget Sound's saltwater mist, continuous rain, and ambient humidity.
Hydroelectric & Renewable Integration
Integrating sub-station feeds from Cascade Mountain hydroelectric projects and regional solar farm microgrids. Grounding transformers stabilize floating neutrals on step-up interconnects, ensuring compliance with Bonneville Power Administration (BPA) grid interconnection standards.
Aerospace & Precision Manufacturing
Heavy industrial supply for aerospace fabrication centers in Everett and Renton. Providing reliable zero-sequence impedance control to eliminate harmonic distortion, mitigate voltage unbalance, and shield automated robotic welding and CNC machining lines.
Urban High-Rise & Commercial Substations
Compact VPI (Vacuum Pressure Impregnated) dry-type grounding transformers engineered for indoor basement substations in Downtown Seattle. Fully compliant with Washington Administrative Code (WAC) fire safety standards and NFPA 70 National Electrical Code (NEC).
Seismic Resilient Substation Upgrades
Seattle sits within a active seismic hazard zone (Cascadia Subduction Zone). All Urja Techniques grounding transformers bound for the Pacific Northwest undergo structural finite element analysis (FEA) to withstand high peak ground acceleration (PGA) per IEEE 693 standards.
Grounding Transformer Technical Matrix
Compare electrical parameters, thermal ratings, and structural features across Urja Techniques' specialized product lines.
| Electrical Parameter | Zigzag (Zn) Dry-Type (VPI) | Zigzag (Zn) Liquid-Filled | Wye-Open Delta (Ynd) |
|---|---|---|---|
| Voltage Class | Up to 35 kV (60 Hz) | Up to 34.5 kV / 69 kV (60 Hz) | Up to 35 kV (60 Hz) |
| Fault Duration Rating | 10 sec / 30 sec / Continuous | 10 sec / 30 sec / 60 sec | 10 sec / 30 sec / Continuous |
| Insulation Medium | Class H (180°C) Polyester/Epoxy Resin | Mineral Oil / FR3 Synthetic Ester | Class H / Mineral Oil Option |
| Zero-Sequence Impedance ($Z_0$) | Custom Specified (Typically 2 - 50 Ω/phase) | Custom Specified (Typically 1 - 100 Ω/phase) | Design Dependent (Matched with NGR) |
| Applicable Standards | IEEE C57.12.01, ANSI C59, IS 2026 | IEEE C57.12.00, IEEE C57.32, IEC 60076 | IEEE C57.12.90, ANSI, IS 1180 |
| Enclosure Protection | NEMA 1, NEMA 3R, IP23/IP54 | Hermetically Sealed / NEMA 4X Pad-Mount | NEMA 3R, NEMA 4X Stainless Steel |
| Seismic Withstand | IEEE 693 High Seismic Level | IEEE 693 High Seismic Level | IEEE 693 High Seismic Level |
Pacific Northwest Power Grid Modernization Trends
Key electrical engineering trends driving neutral grounding transformer procurement across Washington State and Greater Seattle.
1. Washington State Clean Energy Transformation Act (CETA) Compliance
With Washington State mandating 100% clean electricity by 2045, local utilities like Seattle City Light and Puget Sound Energy are rapidly integrating distributed energy resources (DERs). Grounding transformers play a fundamental role in interconnecting utility-scale solar, wind, and battery storage systems (BESS) by establishing steady neutral points on step-up transformers, preventing islanding overvoltages, and meeting strict utility interconnection requirements.
2. Rapid Growth of Bio-degradable Ester Fluid Insulation
In environmentally sensitive areas surrounding Puget Sound, Lake Washington, and the Green-Duwamish River watershed, electrical engineers are replacing traditional mineral oil with natural ester fluids (such as Cargill FR3). Urja Techniques offers liquid-filled grounding transformers filled with biodegradable ester fluids, featuring higher flash points (360°C), superior fire safety ratings, and zero water contamination risk.
3. Microgrid Resilience & Battery Energy Storage Systems (BESS)
To guard against weather-induced outages in coastal regions and timber corridors, commercial campuses and municipal facilities are installing localized microgrids. Grounding transformers equipped with short-time rated Neutral Grounding Resistors (NGR) provide the necessary system grounding during islanded mode operation, ensuring seamless transition between grid-tied and autonomous generator modes.
Seattle Procurement FAQ for Grounding Transformers
Answers to common technical, regulatory, and logistics queries from electrical contractors, EPCs, and utility engineers in the Pacific Northwest.
Q1: Why is a Zigzag grounding transformer required for ungrounded 34.5kV feeds in Seattle?
Ungrounded 34.5kV delta systems in industrial and commercial distribution networks cannot naturally carry zero-sequence fault current. A single line-to-ground fault creates severe line-to-ground voltage escalation (up to 173% of normal phase voltage) on healthy phases, leading to catastrophic insulation breakdown. A Zigzag grounding transformer artificially creates a stable neutral point, permitting controlled ground fault current flow for relay detection and limiting transient overvoltages.
Q2: How do Urja Techniques transformers resist Seattle’s high ambient humidity and coastal air?
For dry-type transformers, we utilize advanced Vacuum Pressure Impregnation (VPI) with Class H polyester/epoxy resin, forming a moisture-impermeable, corrosion-proof barrier around the coils. For outdoor liquid-filled pad-mounted units, we apply C5-M marine-grade paint systems, heavy-duty stainless steel tanks, and hermetically sealed tanks fitted with nitrogen cushions or conservators to prevent atmospheric moisture ingress.
Q3: Can you supply custom Grounding Transformer and NGR integrated packages?
Yes. Urja Techniques engineers fully integrated grounding packages consisting of the grounding transformer (Zigzag or Wye-Delta), Neutral Grounding Resistor (NGR), current transformers (CTs) for ground-fault protection, disconnect switches, and NEMA 3R/4X outdoor enclosures. These packages are pre-wired and factory-tested prior to shipment.
Q4: Are your transformers compliant with IEEE 693 seismic standards for King County?
Absolutely. Seattle is located in Seismic Zone 4. Our transformers undergo rigorous structural finite element modeling to ensure internal core-and-coil bracing, bush mounting, and tank anchor points meet IEEE 693 high seismic qualification standards, ensuring structural integrity during seismic events in the Pacific Northwest.
Q5: What are the lead times and delivery logistics from Urja Techniques to Seattle port or site?
We offer expedited engineering design and manufacturing schedules. Standard custom grounding transformers ship within 8 to 12 weeks. Shipments travel via direct ocean freight lines to the Port of Seattle or Port of Tacoma, complete with full export documentation, UL/CSA compliance documentation, and factory acceptance test (FAT) certificates.
